Mercury A1

Overview

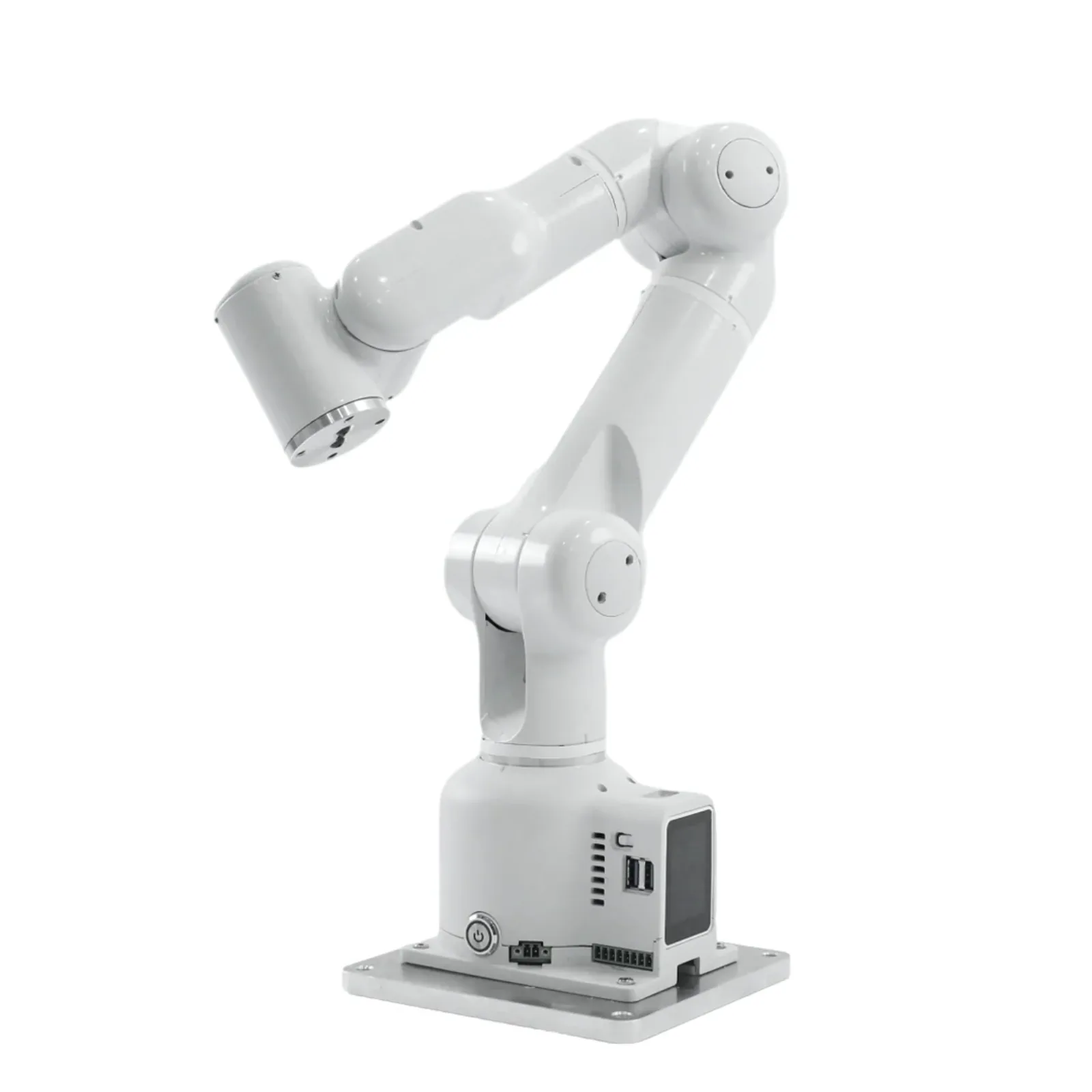

The Elephant Robotics Mercury A1 is a 7-axis desktop collaborative robotic arm priced at $4,999, offering 1 kg payload and 640 mm height. The addition of a seventh axis beyond the conventional 6-axis cobot configuration provides redundant degrees of freedom, which enables the robot to manoeuvre around obstacles and adopt more natural arm postures during complex tasks. Elephant Robotics, a Chinese robotics company with a strong focus on accessible research and education robotics, has positioned the Mercury A1 as a research-grade desktop arm at a price point that was previously inaccessible for this level of kinematic capability.

Key Specifications

• Axes: 7
• Payload: 1 kg
• Height: 640 mm (arm extended)
• Repeatability: ±0.05 mm
• Price: $4,999

The Mercury A1 supports ROS 2, Python, and Elephant Robotics' myStudio programming environment. A built-in ESP32 microcontroller in the base allows for custom sensing integration, and the arm is compatible with a range of end effectors from Elephant Robotics' ecosystem as well as third-party grippers.

Use Cases

UK university robotics and AI research departments are the primary users, deploying the Mercury A1 for manipulation research, imitation learning experiments, and arm control algorithm development. The 7-axis configuration is particularly valuable for researchers studying motion planning in cluttered environments, where kinematic redundancy allows the arm to reach a target configuration while avoiding intermediate obstacles.

Educational robotics courses use the Mercury A1 as a hands-on platform for teaching advanced robot kinematics, which is increasingly relevant given the shift towards 7-axis architectures in commercial cobot development.

Buying Used

A modest secondary market exists through university surplus channels and Elephant Robotics' refurbishment programme. Given the relatively recent introduction of the platform, used units are limited in supply. Confirm joint encoder health and repeatability performance before purchase.

Alternatives to Consider

• Franka Research 3 for a 7-axis arm with superior torque sensing at a higher price
• Kinova Gen3 for a 7-axis cobot with strong research ecosystem and ROS support
• Dobot Nova 2 for a 6-axis alternative at a similar price if 7-axis redundancy is not required
