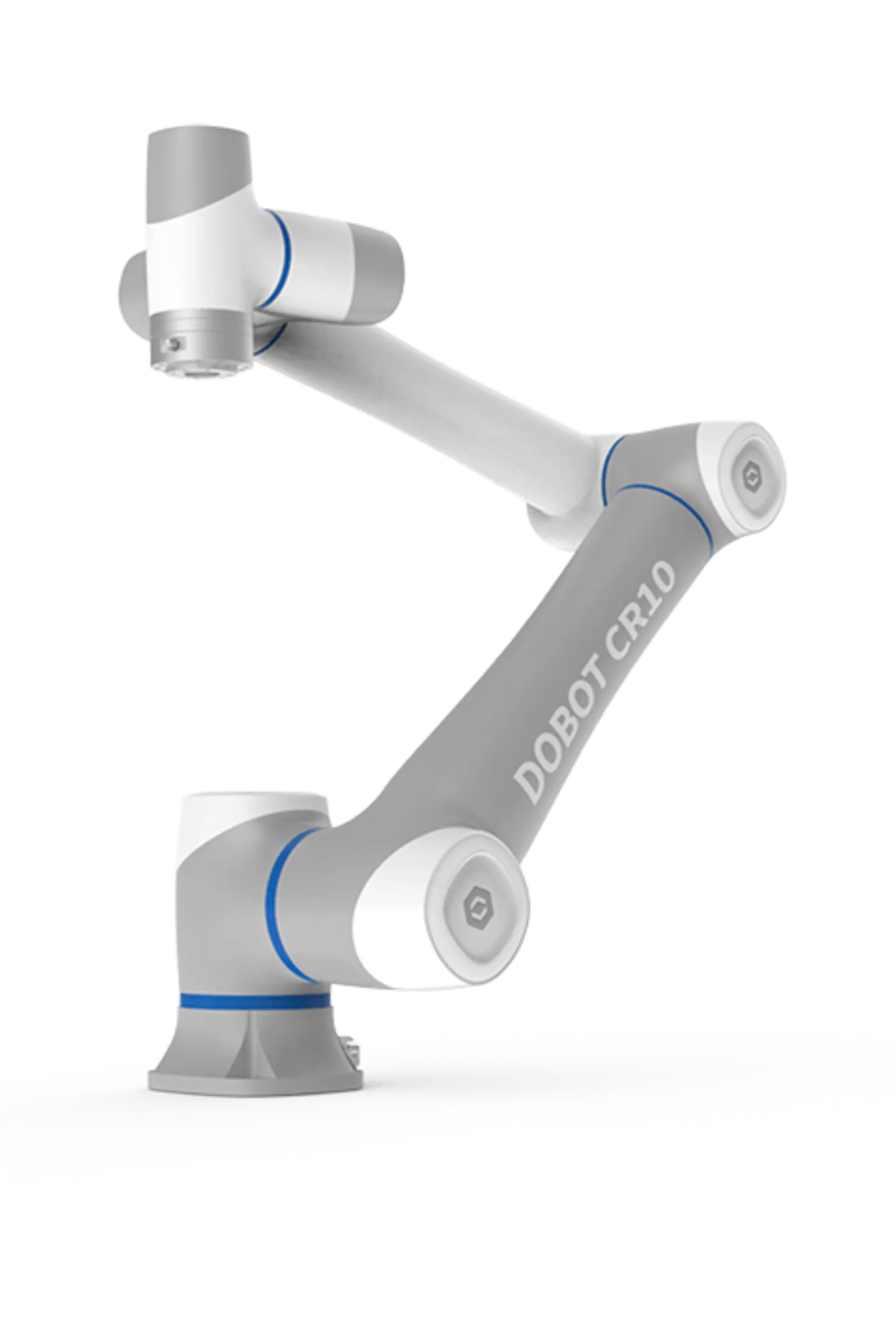

DOBOT CR10

Overview

The Dobot CR10 is a 6-axis collaborative robot from Dobot, a Shenzhen-based manufacturer that began as a desktop arm maker before moving into industrial cobots. The CR10 carries 10 kg over a 1,525 mm reach and achieves up to 4 m/s TCP speed, positioning it as a higher-speed option than many competitors at this payload class. Dobot targets cost-sensitive markets, and the CR10 is typically priced below equivalent UR and FANUC models.

Key Specifications

• Payload: 10 kg
• Reach: 1,525 mm (max reach; working radius 1,300 mm)
• Degrees of freedom: 6
• Repeatability: ±0.03 mm
• TCP speed: 4 m/s
• Weight: 40 kg
• IP rating: IP54
• Safety: ISO 10218-1 and ISO/TS 15066 compliant

The CR10 uses current-based collision detection across all joints and includes a built-in 6-axis force-torque sensor at the flange.

Use Cases

The CR10 is used for palletising, machine tending, welding, and heavy pick-and-place. Its reach of 1,525 mm makes it suited to tasks where the arm must span conveyor widths or reach into deep containers. Dobot markets it to SME manufacturers looking for cobot capability at a lower upfront cost.

Buying Used

The Dobot CR10 has limited secondhand presence in the UK compared to Universal Robots or FANUC equipment. When units appear, pricing ranges from £10,000 to £18,000. Support infrastructure in the UK is less developed than for tier-one brands, so assess the availability of local service partners before committing. Request commissioning documentation and any previous maintenance records.

Alternatives to Consider

• Universal Robots UR10e: 12.5 kg payload, comparable reach, larger UK support network, and stronger resale liquidity.
• FANUC CRX-10iA: 10 kg payload, FANUC's industrial controller, and an extensive UK service network.
• ABB GoFa CRB 15000: Lower payload at 5 kg but faster TCP speed and IP67 protection.
