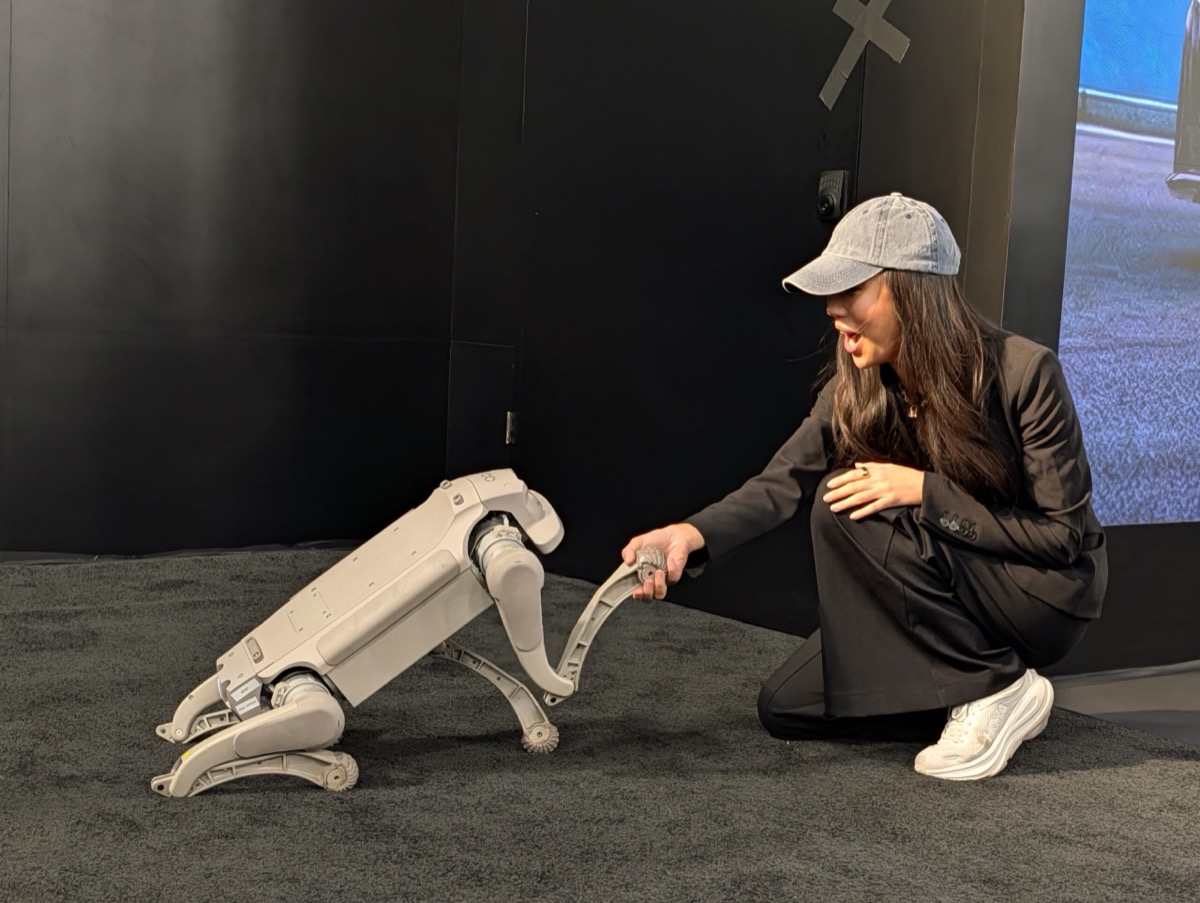

FX Aegis Basic Quadruped

Overview

The FX Aegis Basic Quadruped is an entry-level quadruped from Faraday Future Robotix, a Chinese robotics manufacturer not affiliated with the electric vehicle company of a similar name. It carries 10 kg payload and reaches 3.7 m/s at $2,490, which gives it a payload-to-price ratio that is notable in the sub-$3,000 segment. At this price, most competing quadrupeds offer only 3 kg payload (Unitree Go2 series), making the FX Aegis Basic's 10 kg specification stand out on paper for buyers with sensor-heavy payload requirements.

The FX Aegis Basic targets developers and educational institutions seeking a capable platform at low cost. Faraday Future Robotix is a smaller manufacturer with limited international presence compared to Unitree or Deep Robotics, which has implications for support and SDK documentation quality.

Key Specifications

• Degrees of freedom: 12
• Payload: 10 kg
• Top speed: 3.7 m/s
• IP rating: IP54
• Software: ROS compatible SDK (limited English documentation)

The IP54 rating enables use in light outdoor environments. The ROS-compatible SDK allows integration with standard robotics software stacks, though documentation depth varies.

Use Cases

The FX Aegis Basic is used for education, research prototyping, and light inspection demonstrations. Its high payload capacity relative to price makes it attractive for attaching sensor payloads in university research environments where budget is constrained. Potential applications include mounting LiDAR units for SLAM research or attaching compute modules for onboard machine learning experiments.

Buying Used

The FX Aegis Basic has very limited secondhand presence in the UK. If available, pricing would range from £1,200 to £1,800. Support and spare parts availability outside China is uncertain, and this uncertainty is a material risk for any research programme dependent on the hardware. Verify SDK documentation completeness and the availability of English-language support before committing to this platform for a development project. Community forums for this specific robot are small compared to Unitree or Deep Robotics equivalents.

Alternatives to Consider

• Unitree Go2 EDU: Better-supported SDK and larger global developer community, with payload rail for sensor mounting, at $2,800.
• Deep Robotics Lynx: Higher performance, better documentation, and a clearer commercial roadmap, at $8,000.
• Unitree Go2 Pro: Proven platform with ROS2 support, 4D lidar, and a large international user base at $2,100.
