Jueying X20

Overview

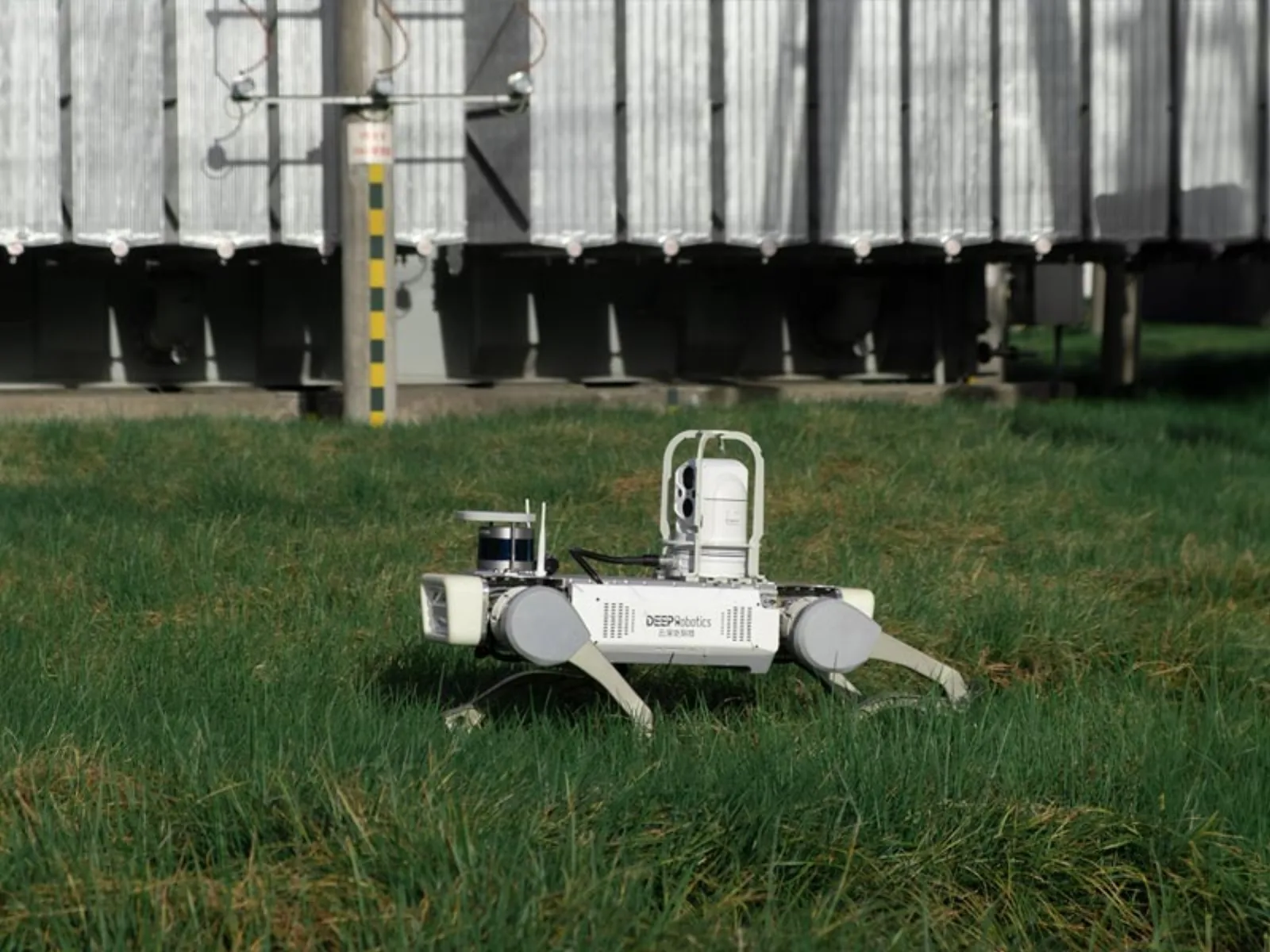

The Deep Robotics Jueying X20 is Deep Robotics' heavy-duty industrial quadruped, weighing 56 kg with 20 kg payload, IP67 protection, and a 470 mm standing height. Priced at $114,000, it targets oil and gas, mining, and utility inspection markets at the high end of the industrial quadruped segment. Deep Robotics manufactures it in Hangzhou, China, and the Jueying X20 competes directly with ANYbotics ANYmal D and Boston Dynamics Spot for enterprise inspection contracts, often winning on price in markets where the established brands' premium is a barrier.

The IP67 rating and 20 kg payload enable full industrial inspection sensor suites, including gas detectors, thermal cameras, 3D LiDAR arrays, and onboard compute for real-time analysis, all simultaneously mounted without approaching the payload limit.

Key Specifications

• Degrees of freedom: 12
• Payload: 20 kg
• Platform weight: 56 kg
• Standing height: 470 mm
• IP rating: IP67
• Top speed: approximately 1.5 m/s
• Battery runtime: approximately 2 to 3 hours
• Software: autonomous inspection SDK, ROS compatible

The 20 kg payload is double that of Boston Dynamics Spot and double ANYmal D, providing substantially more flexibility in sensor configuration. The ROS-compatible SDK allows integration with standard navigation and perception frameworks.

Use Cases

The Jueying X20 is deployed for autonomous inspection at chemical plants, offshore platforms, power stations, and large industrial facilities. Deep Robotics markets it with inspection software packages for route planning, gauge reading, valve status monitoring, and anomaly reporting. Several Chinese energy companies have deployed it for routine facility inspection, with European deployments growing as the platform builds a track record. Its IP67 rating enables use in wet environments including hose-down zones and outdoor operation in rain.

Buying Used

The Jueying X20 is rarely available on the open secondhand market given its high value and enterprise sales model. When units appear, expect to pay above £65,000. Given the significant investment, a formal inspection by a qualified robotics engineer is essential before purchase. Verify IP67 seal integrity across all joints and sensor ports, confirm the software licence and cloud management subscription status, and request the full maintenance and operational history from the previous owner.

Alternatives to Consider

• ANYbotics ANYmal D: Swiss-engineered with ATEX Zone 2 certification option and strong European service infrastructure, at $100,000.
• Boston Dynamics Spot: More established inspection software ecosystem with broader third-party integrations, at $74,500.
• Unitree B2: Lower cost with IP67 and 40 kg payload for applications where cost is the primary constraint, at $35,000.
