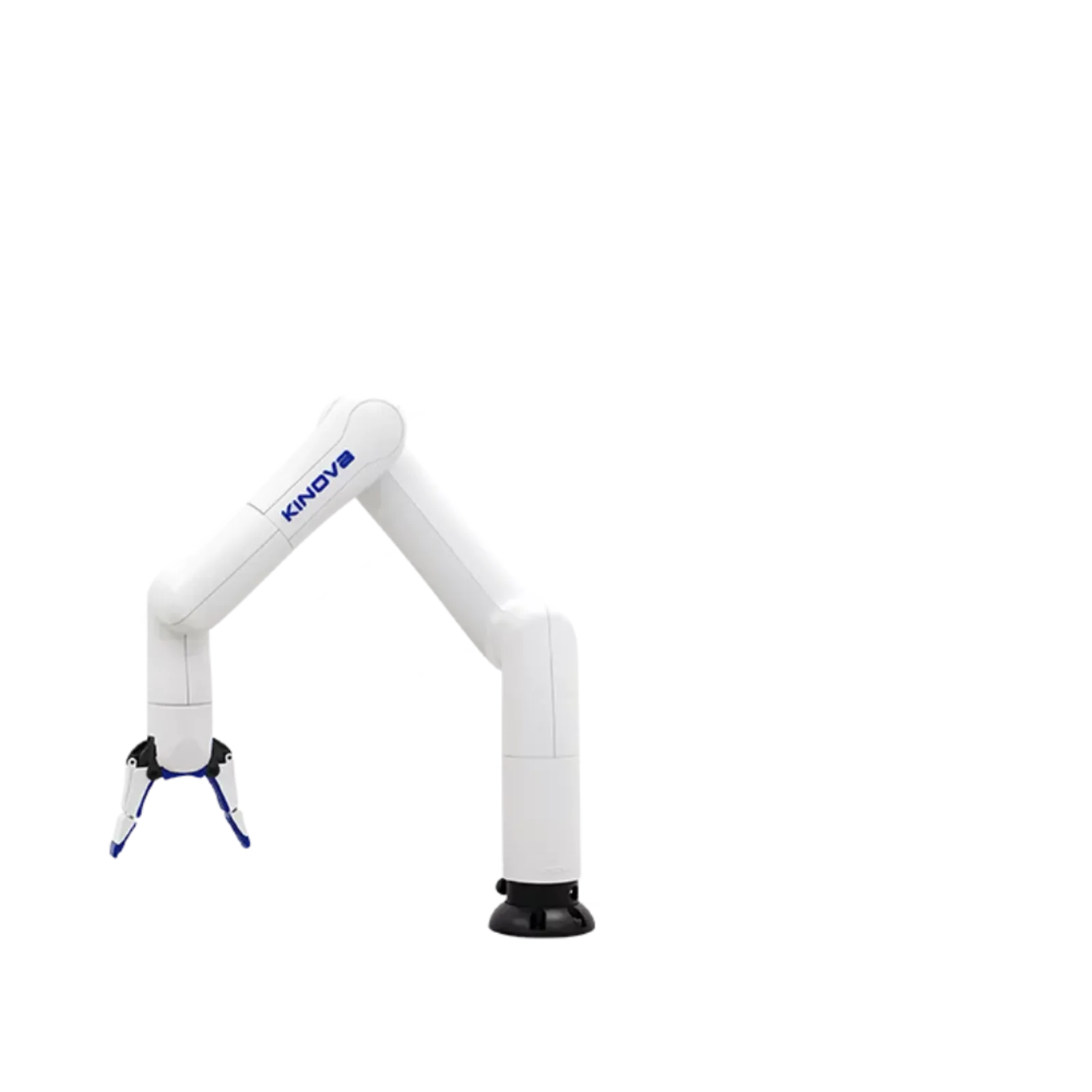

Kinova Gen3 Lite

Overview

The Kinova Gen3 Lite is the lightweight entry in Kinova's Gen3 family, weighing just 5.4 kg with a 0.5 kg payload across 6 axes. It is designed primarily for assistive robotics and educational applications where minimal weight is critical, such as wheelchair-mounted manipulation systems and small mobile robot platforms. Kinova Robotics manufactures it in Boisbriand, Quebec, Canada. The Gen3 Lite is the most affordable arm in Kinova's range and serves as an accessible entry point to the Kortex API ecosystem.

The 5.4 kg total arm weight is the key differentiating specification. Most cobots of comparable reach weigh significantly more, making them impractical for mounting on wheelchairs or lightweight mobile bases. The Gen3 Lite is certified for assistive use and is covered by several accessibility funding programmes in Canada and Europe.

Key Specifications

• Payload: 0.5 kg
• Reach: 905 mm
• Degrees of freedom: 6
• Repeatability: ±0.1 mm
• Weight: 5.4 kg
• IP rating: IP52
• Software: Kortex API (ROS, ROS2, Python)

The Gen3 Lite shares the Kortex API with the Gen3 and Link 6, meaning software developed for one transfers to the others with minimal modification. This is a practical advantage for labs running multiple Kinova platforms.

Use Cases

The Gen3 Lite is used in assistive robotics for wheelchair users, enabling people with upper limb disabilities to perform manipulation tasks independently. It is also used on lightweight mobile robot platforms for research, and in university teaching laboratories where a full-size industrial cobot would be impractical. The 0.5 kg payload limits utility to handling lightweight objects such as cups, utensils, small tools, and packaged food items. Kinova markets it for educational robotics programmes in secondary schools and universities.

Buying Used

The Gen3 Lite has a limited secondhand market. Units appear occasionally through university surplus sales and specialist robotics dealers. Pricing ranges from £2,000 to £5,000 depending on condition and included accessories. As with the Gen3, verify Kortex API firmware compatibility with your target software stack. Check all 6 joints for smooth operation, paying particular attention to the smaller wrist joints which may show wear in high-cycle lab environments.

Alternatives to Consider

• Kinova Gen3: 7-axis design with 4 kg payload and higher precision, more capable for most manipulation tasks at a moderate additional cost.
• Petoi Bittle X: Much lower cost and smaller scale, appropriate only for programming education rather than real manipulation.
• Universal Robots UR3e: Much higher payload at 3 kg for benchtop assembly, though far heavier at 11.2 kg and not suited to mobile or wheelchair-mounted platforms.
