ANYmal D

Overview

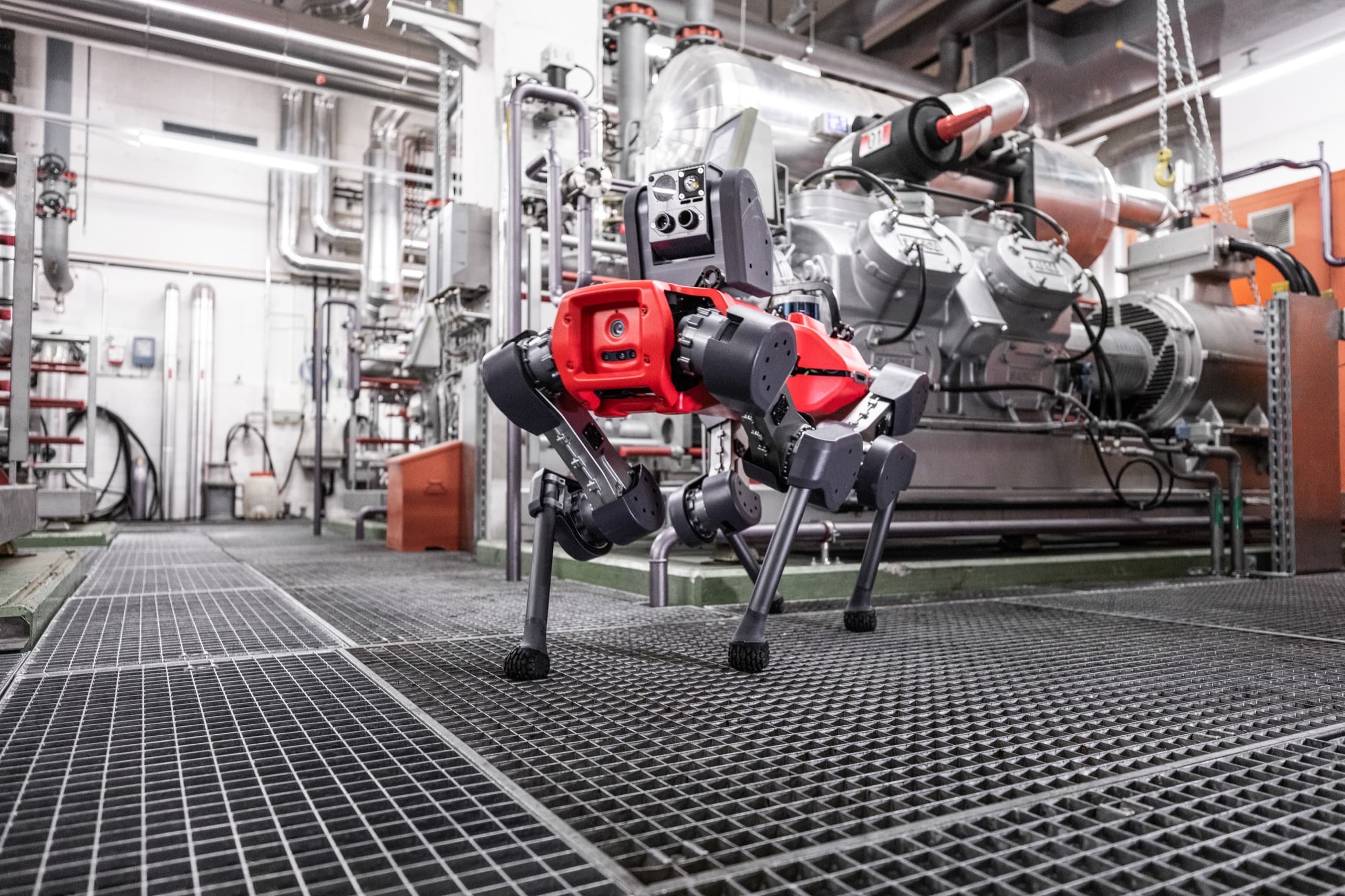

The ANYbotics ANYmal D is ANYbotics' current-generation inspection quadruped, manufactured in Zurich, Switzerland. It is an IP67-rated 40 kg robot with 10 kg payload and a 2-hour runtime, designed for automated inspection of industrial facilities in harsh environments including wet areas, confined spaces, and potentially explosive atmospheres. ANYbotics was founded in 2016 as a spin-out from ETH Zurich and has built the ANYmal platform into a commercially deployed industrial inspection solution used by oil and gas, chemical, and power generation companies globally.

ANYbotics positions the ANYmal D for continuous autonomous inspection without human intervention, replacing manual inspection rounds and reducing the exposure of workers to hazardous environments. The platform supports hot-swap battery replacement to enable near-continuous operation.

Key Specifications

• Degrees of freedom: 12
• Payload: 10 kg
• Top speed: 1.5 m/s
• Weight: 40 kg
• Battery runtime: 2 hours per charge, with hot-swap battery support
• IP rating: IP67
• Certifications: ATEX Zone 2 option available
• Software: ANYmal Perception, ANYmal Navigation, cloud fleet management

Hot-swap battery support enables continuous operation without downtime: the robot autonomously returns to a charging dock, batteries are swapped (manually or automatically), and inspection resumes. The ATEX Zone 2 certification option is available for deployment in potentially explosive atmospheres, which is a requirement for oil and gas facilities.

Use Cases

ANYmal D is deployed at oil and gas platforms, chemical plants, power stations, data centres, and water treatment facilities for routine autonomous inspection. It reads gauges, detects leaks via thermal and gas sensors, checks equipment status, and generates inspection reports automatically on pre-programmed routes. In Europe, several offshore energy operators use ANYmal D fleets for manned-hours reduction, directly addressing worker safety and cost reduction targets. The ATEX certification option enables use in classified Zone 2 hazardous areas.

Buying Used

ANYmal D units are rarely available on the open secondhand market, as ANYbotics operates primarily through direct sales and lease arrangements. When units do appear, pricing starts above £60,000. Contact ANYbotics directly about certified refurbished units, which may include updated software support agreements. Verify ATEX certification status if this is required for your deployment environment.

Alternatives to Consider

• Boston Dynamics Spot: Broader third-party software ecosystem and greater UK deployment base, though not ATEX rated in standard configuration.
• Unitree B2: Substantially lower cost at $35,000 for non-ATEX industrial applications requiring high payload.
• Deep Robotics Jueying X20: Industrial-grade Chinese alternative at comparable pricing.
